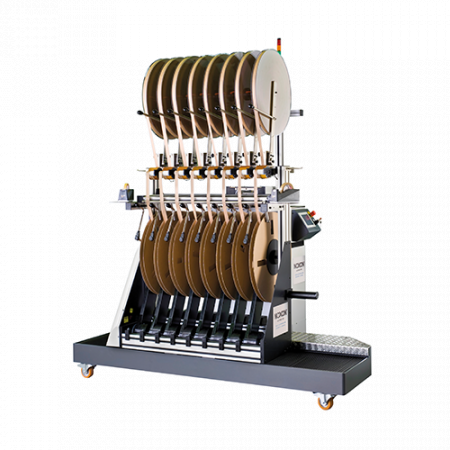

SWS 818
Specifications
| No. of reels | 4 l 6 l 8 l 10 |
| Reel diameter max. | 1000 mm |
| Strip width max. | 50 mm |
| Coil weight max. | 30 kg |
| Speed max. | 25 m/ min. with strip accumulator |
Product Description
- Automatic track winder for 4/8 reels
- Single reels exchangeable in any position
- Practical swivel mechanism to change material or paper reels
- Contact-free speed control
- Exact reel positioning with fixed traverse path
- Operation und parameter input via touch screen display
- Movable threading-in head adapts the position of the material guides automatically to winding diameter
- Programmable parts counter, ejection of samples
- Electromagnetic paper brake
Options
- Higher winding speed
- Double track operation (SWS 824/828-X-D)
- Larger reel dimensions for strip width of 58mm – 82mm (W)
- Strip accumulator for non-stop production AKKU)
- Variable quantity of reel arms
